High‑Pressure Gas Cylinder Anti‑Seismic Safety Stand (No Anchor Required)
Ensuring the stability of high‑pressure gas cylinders is a critical part of workplace safety in laboratories, hospitals, manufacturing facilities, and research institutions. The Proseven Seismic Gas Cylinder Stand MBS‑BG provides a highly effective anti‑seismic solution designed specifically to prevent cylinder tipping during earthquakes – without requiring floor anchors or drilling work.
Equipped with Pto7 biomass gel pads (100×100 mm) and a sturdy safety strap with buckle, the MBS‑BG stand adheres securely to indoor flooring, delivering strong resistance to lateral seismic forces.
Its performance has been tested under conditions 1.2× stronger than the simulated Great Hanshin Earthquake, demonstrating exceptional stability even during strong ground motion.
High‑pressure gas cylinders pose significant hazards if toppled during earthquakes or sudden impacts. Risks include:
Many facilities cannot install anchor‑based safety equipment due to rental property limitations, cleanroom restrictions, or structural issues. The MBS‑BG solves these challenges by offering a non‑invasive, anchor‑free safety solution that can be installed in minutes.

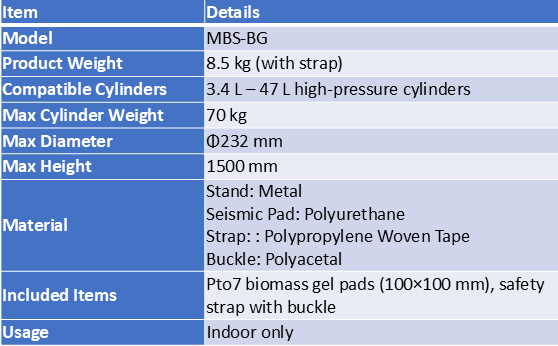

◆Technical Specification◆
The stand requires no drilling, screws, or permanent construction.
making it ideal for:
•Rental facilities
•Laboratories with sensitive flooring
•Areas where frequent layout changes are required
•Cleanrooms
The MBS BG can be repositioned easily without leaving marks on the floor.
The included Pto7 biomass gel pads combine friction enhanced adhesion and material flexibility, allowing them to firmly grip the floor surface while adapting to seismic movement.
By maintaining strong contact through both adhesion and controlled friction, the gel pads help absorb horizontal shock and reduce sliding during earthquakes.
The robust metal frame ensures long term stability, while the included safety strap adds a secondary layer of protection by securing the cylinder’s movement.
Seismic qualification was conducted on a shake table with an input representing JMA Intensity 7 conditions (characterized by very large peak ground acceleration and velocity) and then scaled by 1.2×. Under this amplified input, cylinders remained upright; base slip and strap displacement stayed within acceptable limits.
The MBS BG supports a broad range of cylinder sizes:
•Capacity: 3.4 L to 47 L
•Weight: Up to 70 kg
•Max Diameter: Φ232 mm
•Max Height: 1500 mm
This makes it suitable for industrial, medical, and research applications.
Laboratories & Research Facilities: Prevents hazardous gas leaks and protects expensive equipment during seismic activity.
Medical Institutions: Secures oxygen and specialty gas cylinders in storage rooms, operating rooms, and treatment areas.
Manufacturing Plants: Protects industrial gas cylinders used in welding, cutting, and processing lines.
Universities & Educational Facilities: Supports compliance with campus safety and chemical storage protocols.
Semiconductor & Cleanroom Environments: Ideal for facilities where drilling into floors is prohibited.

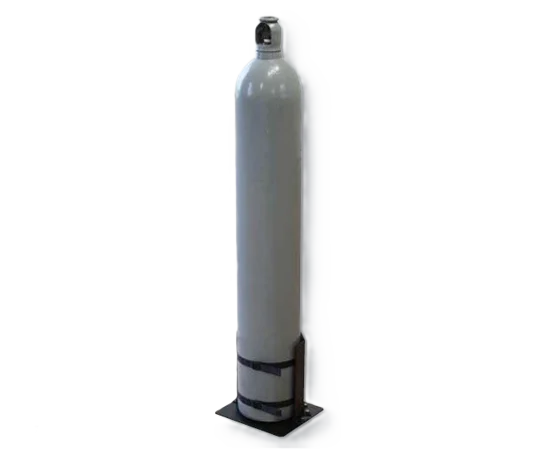

MBS-BG
Anti-Seismic Stand for High-Pressure Gas Sylinders
